High Output Twin Screw Extruder Machine for TPU Processing

Name: High Output Twin Screw Extruder Machine for TPU Processing
Brand: Nanjing Henglande Machinery Technology Co., Ltd.
SKU: TSE20B/35B/50B/65B/75B/95B
Price: 100000 USD
Availability: InStock

Product Details

Place of Origin: Nanjing China

Brand Name: HLD

Certification: SGS/ISO9001/CE

Model Number: TSE20B/35B/50B/65B/75B/95B

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1/set

Price: face to face /set

Packaging Details: Bubble wrap/ Wrap film/ Wooden box

Delivery Time: 35~45 Days

Payment Terms: T/T,

Supply Ability: 200~500 set/year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                            TPU twin screw extruder machine, high output twin screw extruder, twin screw extruder for TPU


Screw Design:	Double-screw	Voltage:	380V,380V/50HZ,Customized
Application:	Plastic Compounding, Food Processing, Chemical Reactions	Power(w):	4,22,55,75,110,132,160
Screw Diameter:	21.7,35.6,50.5,62.4,71	Raw Material:	PP PE PET PS ABS PA PVC Caco3 Etc.
Machine Color:	Customized	Rpm:	400-800
Feedingmode:	Volumetric Or Gravimetric	Heater:	Copper Or Aluminum Heater/Heating Rods
Automatic Grade:	PLC Control

Screw Design:	Double-screw
Voltage:	380V,380V/50HZ,Customized
Application:	Plastic Compounding, Food Processing, Chemical Reactions
Power(w):	4,22,55,75,110,132,160
Screw Diameter:	21.7,35.6,50.5,62.4,71
Raw Material:	PP PE PET PS ABS PA PVC Caco3 Etc.
Machine Color:	Customized
Rpm:	400-800
Feedingmode:	Volumetric Or Gravimetric
Heater:	Copper Or Aluminum Heater/Heating Rods
Automatic Grade:	PLC Control

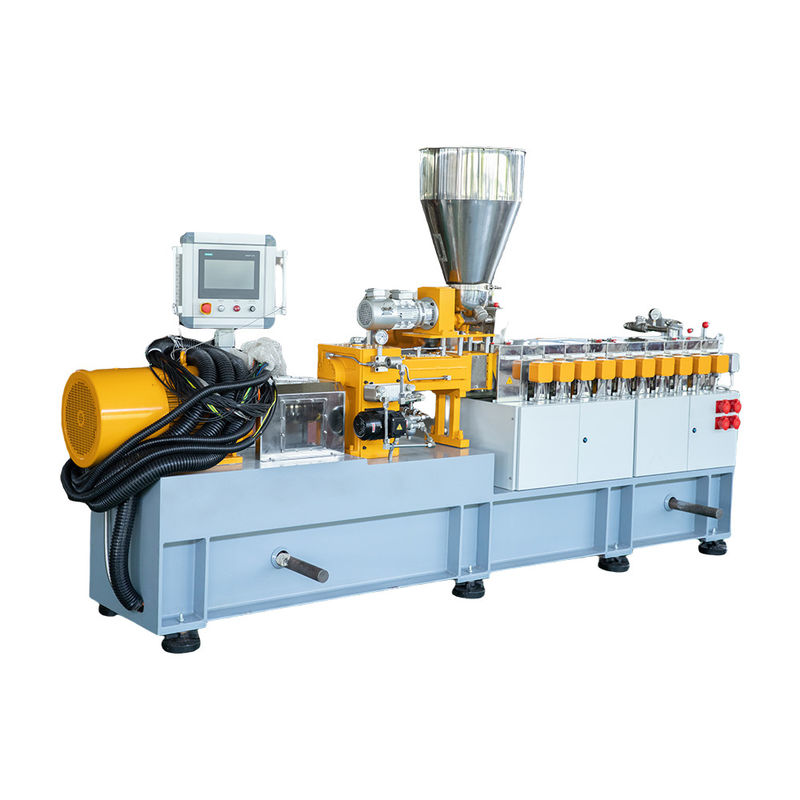

High Output Twin Screw Extruder Machine for TPU Processing

1. Product Overview

The TSE-20/26/35/50/65/75/95 Twin Screw Extruder is engineered for high-torque, high-speed compounding applications. Designed with modular principles, it offers exceptional flexibility for processing a wide range of materials, including [TPU, PET flakes, Flame Retardant Masterbatch]. With advanced processing technology, this machine ensures perfect dispersion, compounding, and pelletizing results.

2. Core Advantages

High Efficiency & Output: Optimized screw geometry ensures high throughput and excellent mixing quality.
Modular Design: Features customizable screw elements (e.g., precisely engineered 32-piece sets) and interchangeable barrels to meet specific compounding needs.
Premium Materials: Equipped with high wear-resistant bimetallic barrels and high-grade alloy screw elements for extended service life.
Precise Control: Integrated with advanced PLC control systems and high-precision melt pressure sensors for stable and safe operation.
Energy Saving: Optimized heating and cooling systems reduce energy consumption by up to [10%~20%].

3. Technical Specifications

Lab Twin-Screw Extruder

Model	Screw Diameter (mm)	L/D Ratio	Main Motor Power (KW)	Max. Screw Speed (rpm)	Output Capacity (kg/h)
TSE-20B	21.7	32-52	4-7.5	600	2-10
TSE- 25D/26D	25	32-52	11	600	5-25

TSE Series Co-rotating Parallel Twin-Screw Extruder

Model(Standard )	Screw Diameter (mm)	L/D Ratio	Main Motor Power (KW)	Screw Speed (rpm)	Output Capacity (kg/h)
TSE-35	35.6	28-72	22,30,37,45	500,600,800	20-100
TSE-50	50.5	28-72	55,75,90,110,132	500,600,800	100-150
TSE-65	62.4	28-72	75-132	500,600,800	200-400
TSE-75	71	28-72	110-250	500,600,800,900	350-800
TSE-95	93	28-72	250-400	500,600,800,900	800-1500
Customizable Models	-	-	-	-	-

4. Applications

This extrusion line is highly suitable for:

Polymer Compounding: Blending, filling, and modifying plastics.
Masterbatch Production: Color masterbatch, flame retardant masterbatch equipment, and functional additives.
Recycling: High-value recycling of PET flakes, scrap films, and edge trims.
Specialty Plastics: TPU processing, biodegradable materials (PLA/PBAT).

5. Service & Global Support

We don't just sell machines; we provide complete engineering solutions.

Pre-sales: Customized machine configuration and layout design.
Production: Strict quality control with regular video updates during manufacturing.
After-sales: Global shipping (experienced in delivering to regions like Australia, South Asia, etc.), fast spare parts delivery, and remote/on-site installation guidance.

Ready to upgrade your extrusion production?

For quick technical support or a customized quote, feel free to reach out directly:

Email: catherine@hldextruder.com

WhatsApp / WeChat: +86 13016994160

* Tip: We typically respond within 12 hours with detailed machine configurations and pricing.
